- Smooth, low profile
- Rugged and reliable
- Smooth internal profile to protect fabric when deflated
- Smooth, snag free cap
- Cap works as a second seal
- Company Brand can be added to the cap
- 100% leak tested during production
- High quality materials to ensure long life
- Core can be removed from the outside of the tube for cleaning

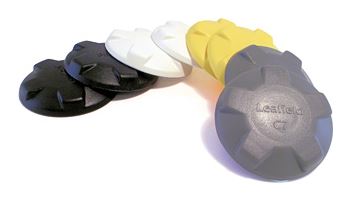

- Caps are available in grey, black, white and Yellow or in custom colours and designs from our prestige cap range.
Product Description

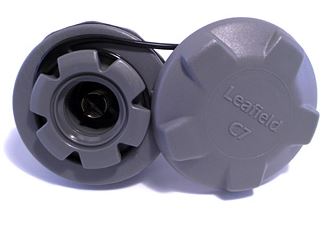

The Leafield Marine C7 valve has become the favourite inflatable boat valve for use in demanding applications such as Military and Commercial RIBs, River Rafts and Inflatable Boats. Its stylish appearance has also won it many fans in the luxury RIB and tender market.

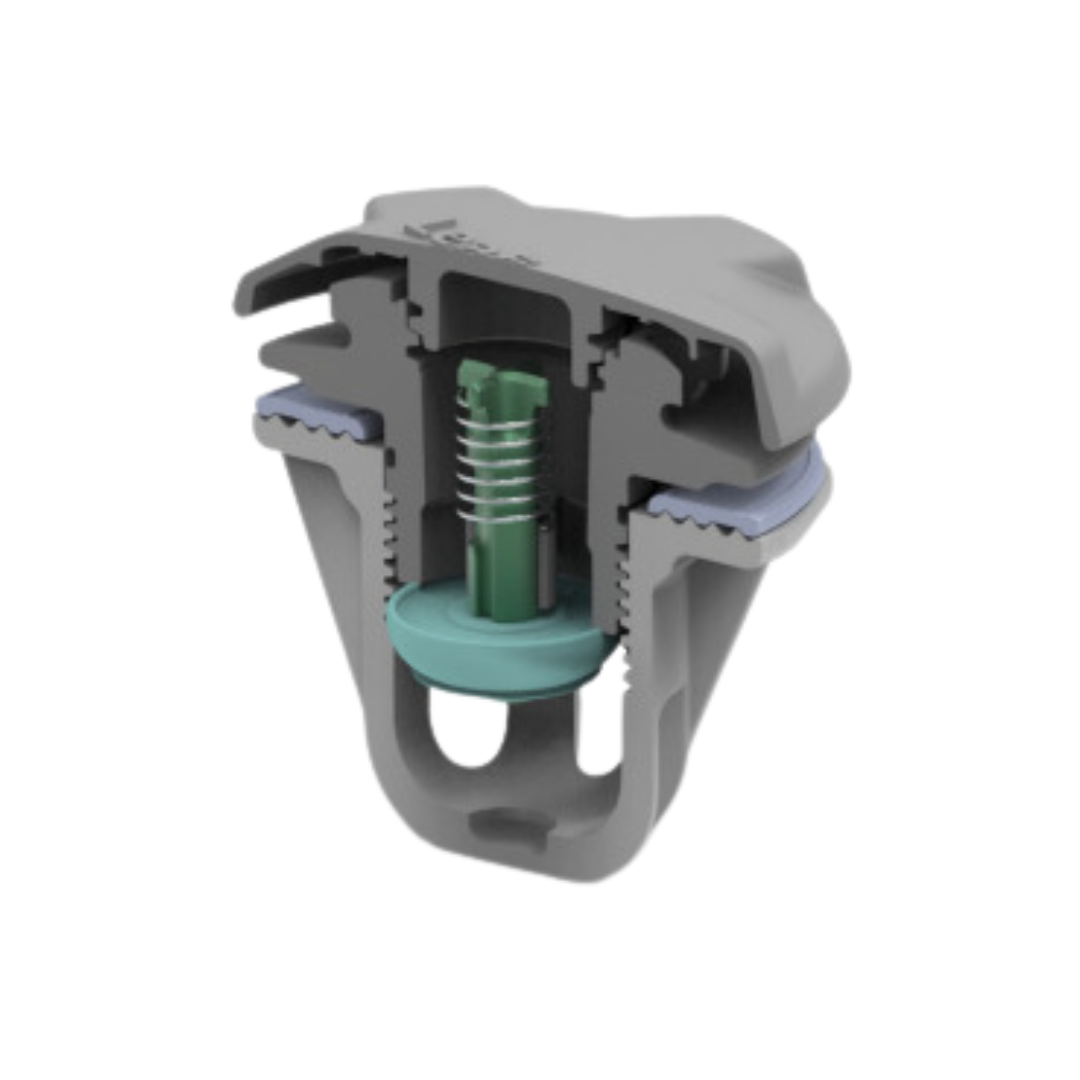

When the cap is fitted the strong retaining strap is hidden from view to prevent it snagging on other equipment. Cap replacement is simple – the valve does not need to be removed.
The C7 core is available in grey or black and the caps are available in grey, black, white or yellow. Your company brand or logo can be added to the valve cap, subject to a minimum quantity and tooling charge.
NATO stock number available.
For pressure relief valves suitable for use in similar applications, please see A6.
Make An Enquiry
Accessories and Service Tools
C7/D7 Pump Hose Fittings
Screw in hose adaptor gives a secure, sealed attachment of the hose during inflation.
Available to suit hoses with 16mm or 20mm internal diameter
Screw-in pump adaptor with internal spring holds the valve spindle open when inflating, to reduce back-pressure (improves flow when using an electric pump).
D7/C7/A6/A9 Tool Kit Spanner – C166051
Small, low cost spanner for use in the field or as part of a spares kit
For use on D7, C7 Valves and A6, A9 Pressure Relief Valves
Cannot be used with a torque wrench
Pressure gauge
0 – 8.5 psi or 0-20 psi range, high accuracy
Ideal for ensuring the optimum performance of your RIB and Raft.
Can be used with any Leafield Marine Inflation/Deflation valves.
Stainless steel housing with a damped shock resistant mechanism
Rugged – protected by the rubber shock-absorbing cover.
D7/C7 Factory Fitting Tools – 0710002
Used together with a torque wrench. This will ensure that the correct tightening torque is applied every time when installing the valve.
Avoids damaging the valve during tightening.
Electric Pump
We do not supply pumps but can recommend the following electric pump
FOR NORTH AMERICAN MARKET ONLY
Available from Man of Rubber River Gear (Distributor)
